Visualizations IV / Factors



STA35B: Statistical Data Science 2

Spencer Frei

1 / 18

Factors

  • Factors are used for categorical variables that have a fixed and known set of values
  • Useful when we want to display character vectors in non-alphabetical order
  • E.g. let's suppose we have a variable that records month:
x1 <- c("Dec", "Apr", "Jan", "Mar")

Two issues:

  • Only twelve possible months, so if we typed "Jam" instead of "Jan", would be hard to catch the error.
  • Sorting by characters is not meaningful:
sort(x1)
#> [1] "Apr" "Dec" "Jan" "Mar"
  • We can fix these by treating them as a factor
  • Factors require a list of valid levels:
month_levels <- c(
"Jan", "Feb", "Mar", "Apr", "May", "Jun",
"Jul", "Aug", "Sep", "Oct", "Nov", "Dec"
)
  • With levels, you can create factors:
y1 <- factor(x1, levels = month_levels)
y1
#> [1] Dec Apr Jan Mar
#> Levels: Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
sort(y1)
#> [1] Jan Mar Apr Dec
#> Levels: Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
2 / 18

Factors

  • If you create a factor from a vector, every element of the vector must be a level of a factor, otherwise you get NA:
x2 <- c("Dec", "Apr", "Jam", "Mar")
(y2 <- factor(x2, levels = month_levels))
#> [1] Dec Apr <NA> Mar
#> Levels: Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
  • If you want to throw an error for non-level vector info, you can use `forcats::fct()
y2 <- fct(x2, levels = month_levels)
#> Error in `fct()`:
#> ! All values of `x` must appear in `levels` or `na`
#> ℹ Missing level: "Jam"
  • If you omit levels, factor() makes factors in alphabetical order:
factor(x1)
#> [1] Dec Apr Jan Mar
#> Levels: Apr Dec Jan Mar
  • forcats::fct() orders by first appearance in the vector
fct(x1)
#> [1] Dec Apr Jan Mar
#> Levels: Dec Apr Jan Mar
  • You can extract levels from a factor using levels():
levels(y2)
#> [1] "Jan" "Feb" "Mar" "Apr" "May" "Jun" "Jul" "Aug" "Sep" "Oct" "Nov" "Dec"
3 / 18

Factor: General Social Survey

  • We'll look at survey data from the General Social Survey (forcats::gss_cat, loaded in tidyverse)
gss_cat
#> # A tibble: 21,483 × 9
#> year marital age race rincome partyid
#> <int> <fct> <int> <fct> <fct> <fct>
#> 1 2000 Never married 26 White $8000 to 9999 Ind,near rep
#> 2 2000 Divorced 48 White $8000 to 9999 Not str republican
#> 3 2000 Widowed 67 White Not applicable Independent
#> 4 2000 Never married 39 White Not applicable Ind,near rep
#> 5 2000 Divorced 25 White Not applicable Not str democrat
#> 6 2000 Married 25 White $20000 - 24999 Strong democrat
#> # ℹ 21,477 more rows
#> # ℹ 3 more variables: relig <fct>, denom <fct>, tvhours <int>
  • When factors are in a tibble, levels do not directly show, but can see them using count:
gss_cat %>%
count(race)
#> # A tibble: 3 × 2
#> race n
#> <fct> <int>
#> 1 Other 1959
#> 2 Black 3129
#> 3 White 16395
4 / 18

GSS Data: exploratory data analysis

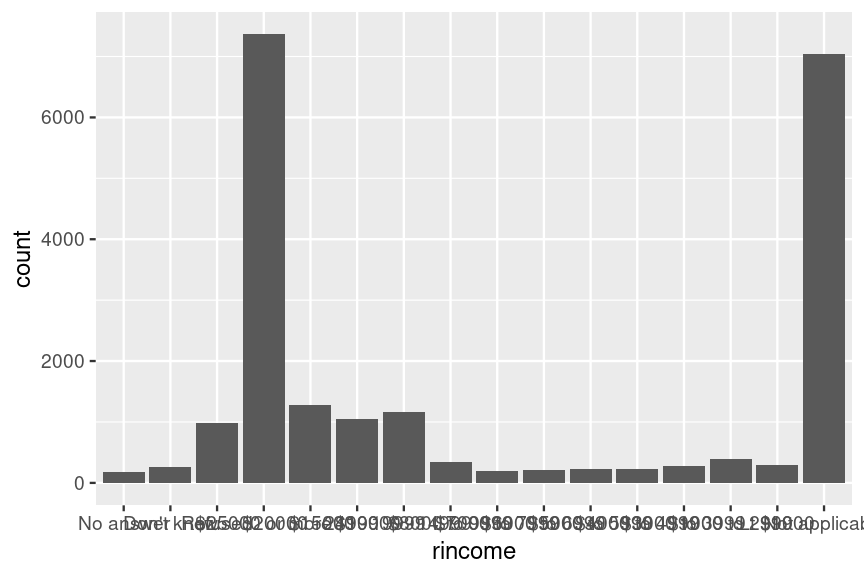

  • Let's look at the distribution of rincome (reported income)
ggplot(gss_cat, aes(x = rincome)) + geom_bar()

  • A little hard to see what's happening on the x-axis!
5 / 18

GSS Data: exploratory data analysis

  • Let's look at the distribution of rincome (reported income)
ggplot(gss_cat, aes(x = rincome)) + geom_bar()

  • A little hard to see what's happening on the x-axis!

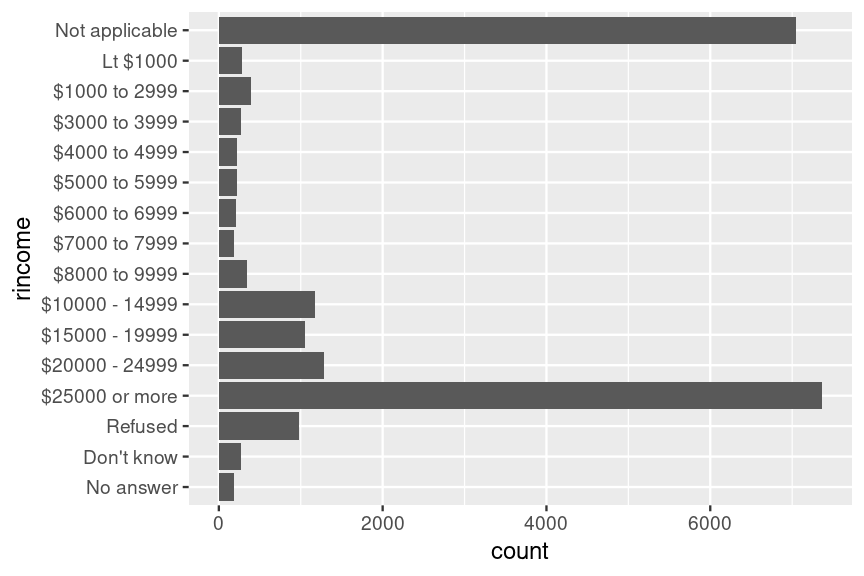

ggplot(gss_cat, aes(y = rincome)) + geom_bar()

5 / 18

GSS Data: exploratory data analysis

  • Does income vary by religion much?
ggplot(gss_cat, aes(x = rincome)) + geom_bar()

  • A little hard to see what's happening on the x-axis!
6 / 18

GSS Data: exploratory data analysis

  • Does income vary by religion much?
ggplot(gss_cat, aes(x = rincome)) + geom_bar()

  • A little hard to see what's happening on the x-axis!
ggplot(gss_cat, aes(y = rincome)) + geom_bar()

6 / 18

Exploratory data analysis

  • What are the most common religions in the survey? What about party ID?
gss_cat %>% count(relig) %>% arrange(n) %>% print(n=Inf)
#> # A tibble: 15 × 2
#> relig n
#> <fct> <int>
#> 1 Don't know 15
#> 2 Native american 23
#> 3 Other eastern 32
#> 4 Hinduism 71
#> 5 No answer 93
#> 6 Orthodox-christian 95
#> 7 Moslem/islam 104
#> 8 Inter-nondenominational 109
#> 9 Buddhism 147
#> 10 Other 224
#> 11 Jewish 388
#> 12 Christian 689
#> 13 None 3523
#> 14 Catholic 5124
#> 15 Protestant 10846
gss_cat %>% count(partyid) %>% arrange(n) %>% print(n=Inf)
#> # A tibble: 10 × 2
#> partyid n
#> <fct> <int>
#> 1 Don't know 1
#> 2 No answer 154
#> 3 Other party 393
#> 4 Ind,near rep 1791
#> 5 Strong republican 2314
#> 6 Ind,near dem 2499
#> 7 Not str republican 3032
#> 8 Strong democrat 3490
#> 9 Not str democrat 3690
#> 10 Independent 4119
7 / 18

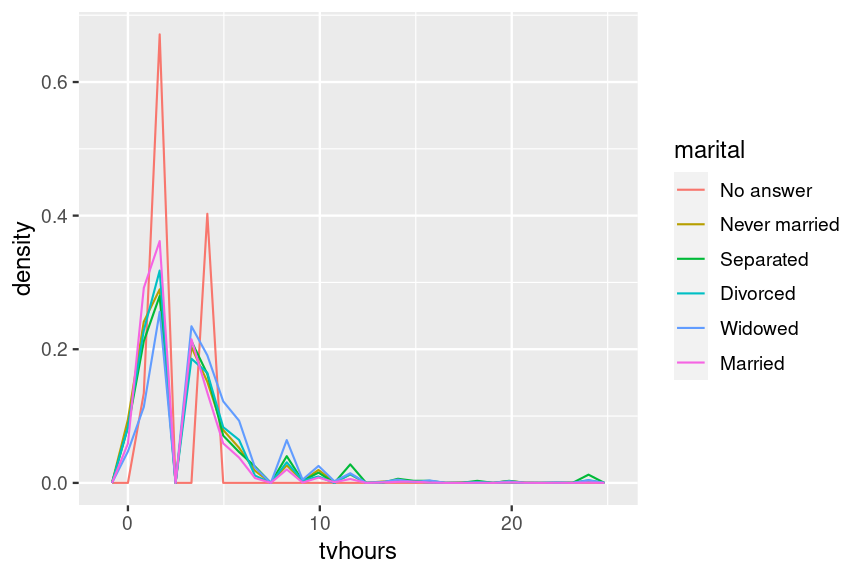

  • Let's look at different TV watching habits by marital status. Maybe we can first try doing a geom_freqpoly() with color given by religion.
ggplot(gss_cat,
aes(x = tvhours, y = after_stat(density), color = marital)) +
geom_freqpoly()

8 / 18
  • Let's look at different TV watching habits by marital status. Maybe we can first try doing a geom_freqpoly() with color given by religion.
ggplot(gss_cat,
aes(x = tvhours, y = after_stat(density), color = marital)) +
geom_freqpoly()

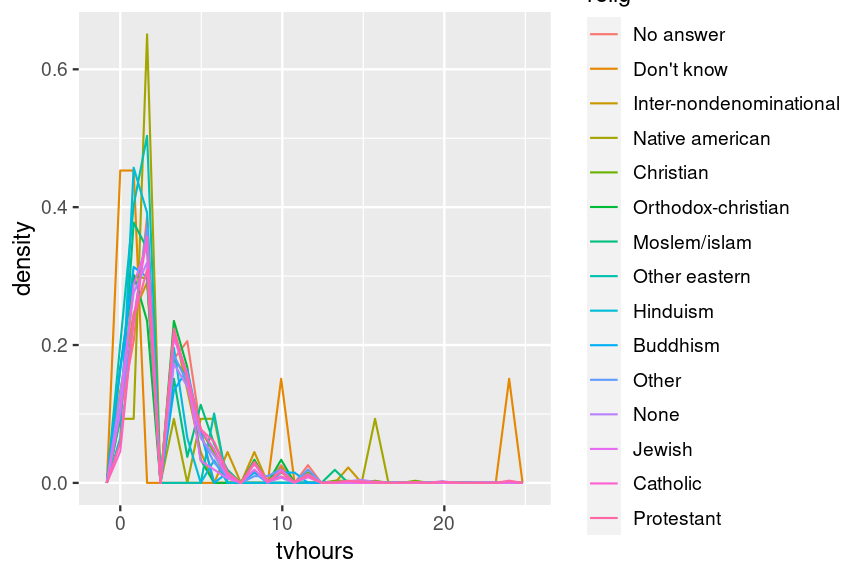

  • If we try the same thing for religion, it is trickier to visualize:

  • Let's look at TV hours watched per religion. Maybe we can first try doing a geom_freqpoly() with color given by religion.

ggplot(gss_cat,
aes(x = tvhours, y = after_stat(density), color = relig)) +
geom_freqpoly()

  • We need to reduce the amount of data we're trying to show.
8 / 18
  • To reduce amount of information, we should summarize the data, e.g. by taking the average per religion.
relig_summary <- gss_cat |>
group_by(relig) |>
summarize(
tvhours = mean(tvhours, na.rm = TRUE),
n = n()
)

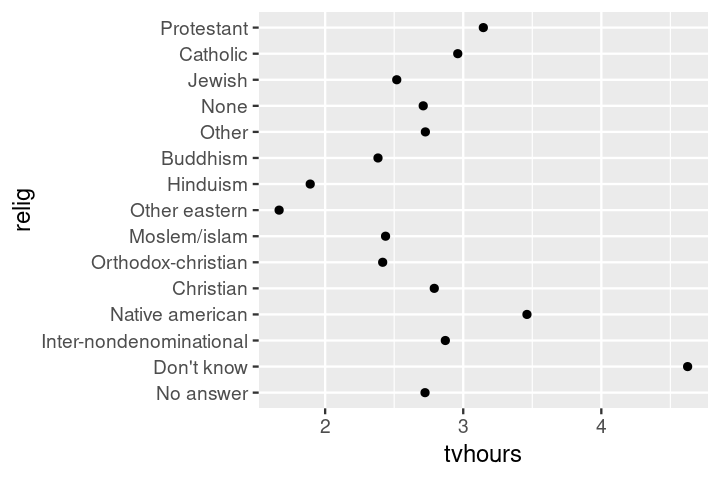

ggplot(relig_summary, aes(x = tvhours, y = relig)) +
geom_point()

  • Hard to read because there's no clear pattern in the plot.

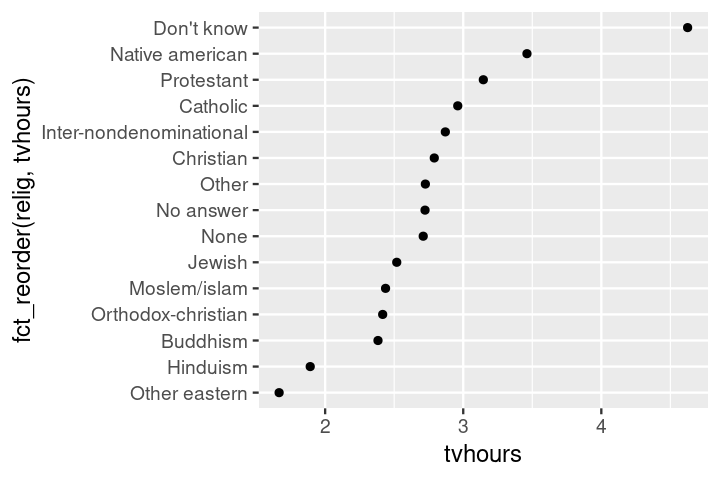

  • To re-order, we can improve it by reordering using fact_reorder( f=, x=, fun=)
  • f: factor whose levels to modify
  • x: numeric vector to give the new order of levels
  • fun: function to use if multiple values of x for given value of f (default: median)
ggplot(relig_summary,
aes(x = tvhours, y = fct_reorder(relig, tvhours))) +
geom_point()

9 / 18

Modifying factor levels

  • Often will want to change values of levels so that plots look better
gss_cat %>% count(partyid)
#> # A tibble: 10 × 2
#> partyid n
#> <fct> <int>
#> 1 No answer 154
#> 2 Don't know 1
#> 3 Other party 393
#> 4 Strong republican 2314
#> 5 Not str republican 3032
#> 6 Ind,near rep 1791
#> # ℹ 4 more rows
  • Not ideal for plotting - inconsistent (acronyms vs full spelling etc)
  • Key function: fct_recode()
gss_cat %>%
mutate(
partyid = fct_recode(partyid,
"Republican, strong" = "Strong republican",
"Republican, weak" = "Not str republican",
"Independent, near rep" = "Ind,near rep",
"Independent, near dem" = "Ind,near dem",
"Democrat, weak" = "Not str democrat",
"Democrat, strong" = "Strong democrat")) %>%
count(partyid)
#> # A tibble: 10 × 2
#> partyid n
#> <fct> <int>
#> 1 No answer 154
#> 2 Don't know 1
#> 3 Other party 393
#> 4 Republican, strong 2314
#> 5 Republican, weak 3032
#> 6 Independent, near rep 1791
#> # ℹ 4 more rows
  • Levels not explicitly mentioned will be kept as is.
10 / 18

Modifying factor levels

  • To combine groups, assign multiple old levels to same new level
gss_cat |>
mutate(
partyid = fct_recode(partyid,
"Republican, strong" = "Strong republican",
"Republican, weak" = "Not str republican",
"Independent, near rep" = "Ind,near rep",
"Independent, near dem" = "Ind,near dem",
"Democrat, weak" = "Not str democrat",
"Democrat, strong" = "Strong democrat",
"Other" = "No answer",
"Other" = "Don't know",
"Other" = "Other party"
)
)
  • If you are collapsing many levels, can use fct_collapse:
gss_cat |>
mutate(
partyid = fct_collapse(partyid,
"other" = c("No answer", "Don't know", "Other party"),
"rep" = c("Strong republican", "Not str republican"),
"ind" = c("Ind,near rep", "Independent", "Ind,near dem"),
"dem" = c("Not str democrat", "Strong democrat")
)
) |>
count(partyid)
#> # A tibble: 4 × 2
#> partyid n
#> <fct> <int>
#> 1 other 548
#> 2 rep 5346
#> 3 ind 8409
#> 4 dem 7180
11 / 18

Examples

  • Let's now try and put some of all of the ideas we've seen so far together
  • Look at the weather tibble in nycflights13:
library(nycflights13)
weather
#> # A tibble: 26,115 × 15
#> origin year month day hour temp dewp humid wind_dir wind_speed
#> <chr> <int> <int> <int> <int> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 EWR 2013 1 1 1 39.0 26.1 59.4 270 10.4
#> 2 EWR 2013 1 1 2 39.0 27.0 61.6 250 8.06
#> 3 EWR 2013 1 1 3 39.0 28.0 64.4 240 11.5
#> 4 EWR 2013 1 1 4 39.9 28.0 62.2 250 12.7
#> 5 EWR 2013 1 1 5 39.0 28.0 64.4 260 12.7
#> 6 EWR 2013 1 1 6 37.9 28.0 67.2 240 11.5
#> # ℹ 26,109 more rows
#> # ℹ 5 more variables: wind_gust <dbl>, precip <dbl>, pressure <dbl>, …
  • Let's see if we can come up with a way of visualizing the temperature trends across every year.
  • We want to visualize what are the minimum temperature, maximum temperature, and average temperature per month, at each location
12 / 18

Data prep

  • We need to compute the min/max/average temp per month in every year in every location
weather2 <- weather %>%
group_by(year, month, origin) %>%
summarize(min_temp = min(temp, na.rm=TRUE), max_temp = max(temp, na.rm=TRUE),
avg_temp = mean(temp, na.rm=TRUE)) %>%
group_by(month, origin) %>%
summarize(min_temp = mean(min_temp, na.rm=TRUE),
max_temp = mean(max_temp, na.rm=TRUE),
avg_temp = mean(avg_temp, na.rm=TRUE), n = n())
  • This tibble only has one year in it, so we don't actually need the code following the second group by.
  • However, if there are > 1 years in tibble, this code will compute the average min/max/mean temp per month across years.
13 / 18

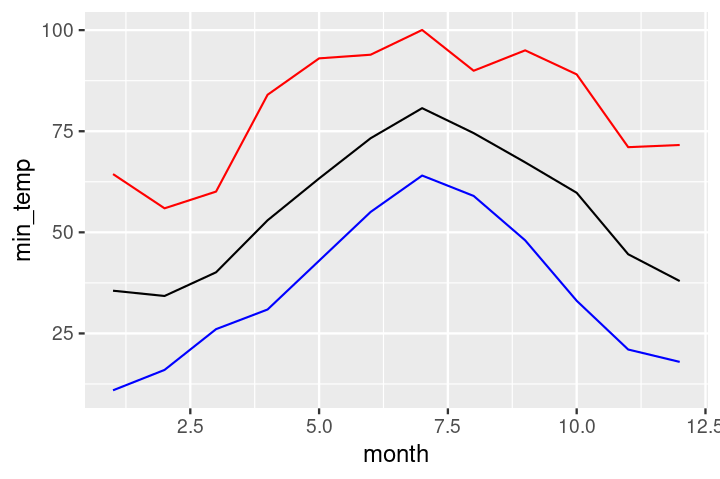

  • Let's try plotting the monthly temps at Newark (EWR).
weather2 %>% filter(origin == 'EWR') %>%
ggplot(aes(x = month)) +
geom_line(aes(y = min_temp), color = 'blue') +
geom_line(aes(y = max_temp), color = 'red') +
geom_line(aes(y = avg_temp), color = 'black')

  • This is OK, but not ideal. No legend appears by default, also have to manually add three geom_line's.
  • Better idea is to clean the tibble so that we have groups of data: for this we need data to be long
(weather3 <- weather2 %>%
pivot_longer(cols = c(min_temp, max_temp, avg_temp),
values_to = "temperature",
names_to = "measurement")
)
#> # A tibble: 108 × 5
#> # Groups: month [12]
#> month origin n measurement temperature
#> <int> <chr> <int> <chr> <dbl>
#> 1 1 EWR 1 min_temp 10.9
#> 2 1 EWR 1 max_temp 64.4
#> 3 1 EWR 1 avg_temp 35.6
#> 4 1 JFK 1 min_temp 12.0
#> 5 1 JFK 1 max_temp 57.9
#> 6 1 JFK 1 avg_temp 35.4
#> # ℹ 102 more rows
14 / 18

Visualizing

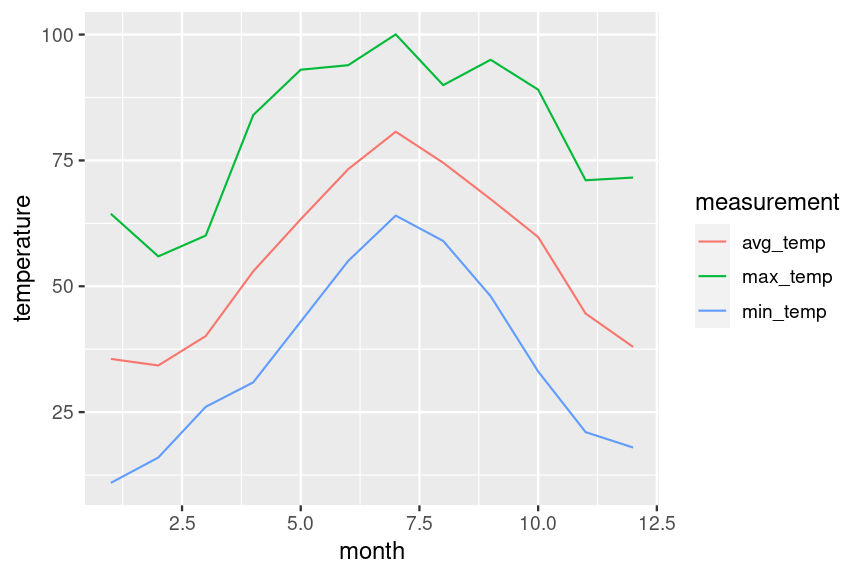

  • Now we can do color by temperature type:
ggplot(weather3 %>% filter(origin == 'EWR'),
aes(x = month, y = temperature, color = measurement)) +
geom_line()

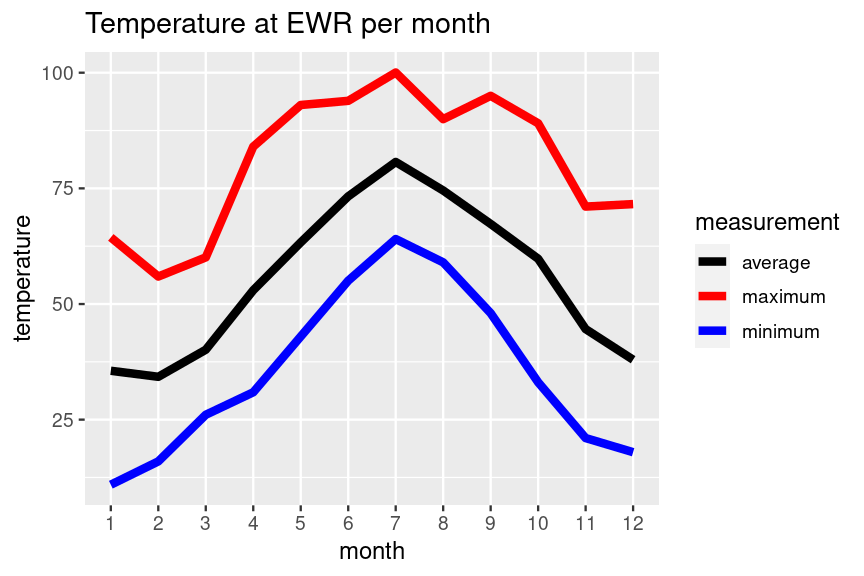

  • Now we'd like better legend; blue for min, black for avg, and red for max; fix ticks
ggplot(weather3 %>% filter(origin == 'EWR'),
aes(x = month, y = temperature, color = measurement)) +
geom_line(linewidth = 2) +
scale_color_manual(
values = c(min_temp = "blue", avg_temp = "black", max_temp = "red"),
labels = c("min_temp" = "minimum", "avg_temp" = "average", "max_temp" = "maximum")) +
scale_x_continuous(breaks = 1:12, minor_breaks = 1:12) +
labs(title = "Temperature at EWR per month")

15 / 18

Visualizing

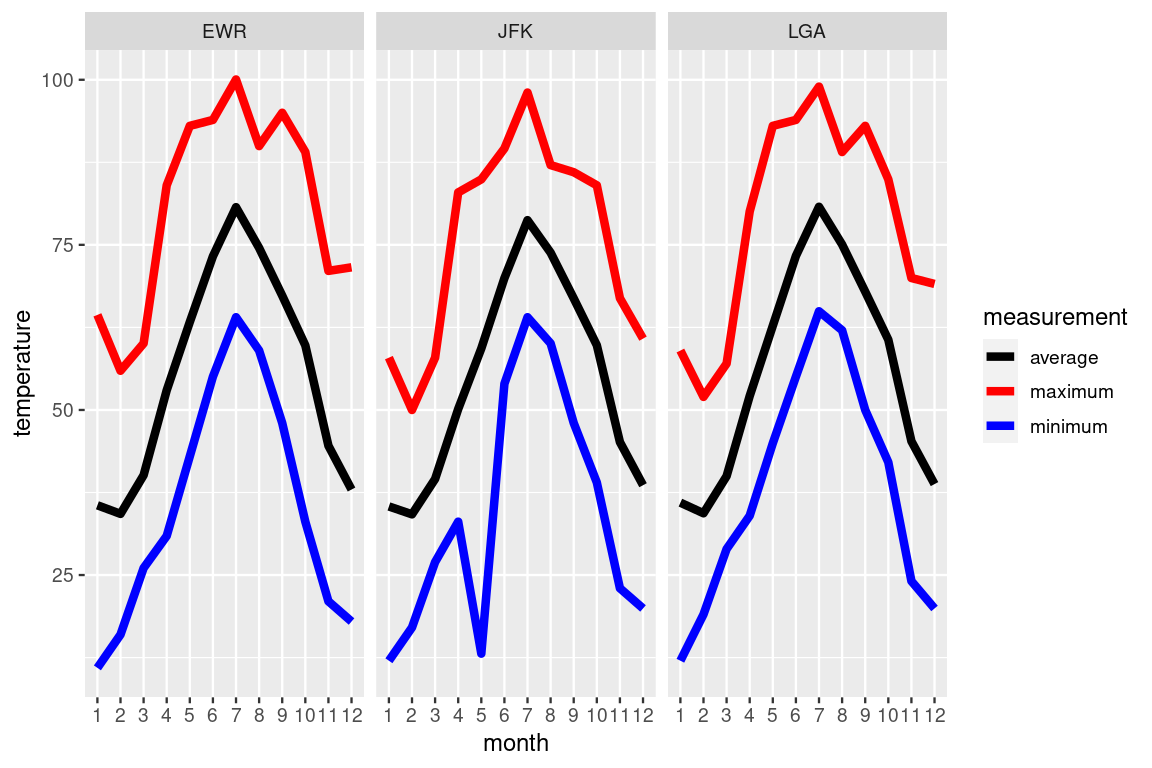

  • Now let's do the same type of plot but with each airport's min/avg/max temp per month plotted side-by-side.
ggplot(weather3,
aes(x = month, y = temperature, color = measurement)) +
geom_line(linewidth = 2) +
scale_color_manual(
values = c(min_temp = "blue", avg_temp = "black", max_temp = "red"),
labels = c("min_temp" = "minimum", "avg_temp" = "average", "max_temp" = "maximum")) +
scale_x_continuous(breaks = 1:12, minor_breaks = 1:12) +
facet_grid(. ~ origin)

  • What happened at JFK in May? Why is it so different from EWR and LGA?
16 / 18
weather %>%
filter(month == 5, temp < 25)
#> # A tibble: 1 × 15
#> origin year month day hour temp dewp humid wind_dir wind_speed
#> <chr> <int> <int> <int> <int> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 JFK 2013 5 8 22 13.1 12.0 95.3 80 8.06
#> # ℹ 5 more variables: wind_gust <dbl>, precip <dbl>, pressure <dbl>,
#> # visib <dbl>, time_hour <dttm>
  • Appears real!
  • How does it compare to EWR and LGA?
weather %>% filter(month == 5, day == 8) %>%
filter(between(hour, 21, 23)) %>% print(n = Inf)
#> # A tibble: 9 × 15
#> origin year month day hour temp dewp humid wind_dir wind_speed
#> <chr> <int> <int> <int> <int> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 EWR 2013 5 8 21 59 53.1 80.6 80 4.60
#> 2 EWR 2013 5 8 22 59 52.0 77.5 90 3.45
#> 3 EWR 2013 5 8 23 57.9 52.0 80.6 0 0
#> 4 JFK 2013 5 8 21 57.0 48.9 74.3 170 11.5
#> 5 JFK 2013 5 8 22 13.1 12.0 95.3 80 8.06
#> 6 JFK 2013 5 8 23 57.2 53.6 87.7 120 4.60
#> 7 LGA 2013 5 8 21 59 48.9 69.2 NA 5.75
#> 8 LGA 2013 5 8 22 59 51.1 75.0 100 6.90
#> 9 LGA 2013 5 8 23 55.9 51.1 83.7 90 6.90
#> # ℹ 5 more variables: wind_gust <dbl>, precip <dbl>, pressure <dbl>,
#> # visib <dbl>, time_hour <dttm>
  • Appears to be only a single instance of this, so definitely an outlier, can't be certain for why it happens.
17 / 18

Midterm studying tips

  • Review labs, homeworks (and homework solutions - HW 2 sol up tonight), and practice midterm
  • Make sure you understand all of the core functions: min, max, mean, pmin, pmax, group_by(), summarize(), pivot_wider, pivot_longer, regex, joins, etc. Understand how NA's work, what typical default behavior for NA's is, etc.
  • Test-taking strategy: Go through exam and solve all of the easy questions first. If it takes more than 2 minutes, skip and return later.
  • Work through examples on the margins / side / back of the exam to make sure you're understanding things correctly.
18 / 18

Factors

  • Factors are used for categorical variables that have a fixed and known set of values
  • Useful when we want to display character vectors in non-alphabetical order
  • E.g. let's suppose we have a variable that records month:
x1 <- c("Dec", "Apr", "Jan", "Mar")

Two issues:

  • Only twelve possible months, so if we typed "Jam" instead of "Jan", would be hard to catch the error.
  • Sorting by characters is not meaningful:
sort(x1)
#> [1] "Apr" "Dec" "Jan" "Mar"
  • We can fix these by treating them as a factor
  • Factors require a list of valid levels:
month_levels <- c(
"Jan", "Feb", "Mar", "Apr", "May", "Jun",
"Jul", "Aug", "Sep", "Oct", "Nov", "Dec"
)
  • With levels, you can create factors:
y1 <- factor(x1, levels = month_levels)
y1
#> [1] Dec Apr Jan Mar
#> Levels: Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
sort(y1)
#> [1] Jan Mar Apr Dec
#> Levels: Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
2 / 18
Paused

Help

Keyboard shortcuts

, , Pg Up, k Go to previous slide
, , Pg Dn, Space, j Go to next slide
Home Go to first slide
End Go to last slide
Number + Return Go to specific slide
b / m / f Toggle blackout / mirrored / fullscreen mode
c Clone slideshow
p Toggle presenter mode
t Restart the presentation timer
?, h Toggle this help
Esc Back to slideshow
